SiC Thrust Washer Sliding Bearing for Canned Motor Pump

  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
Plaats van herkomst China
Merknaam CSQ
Certificering FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modelnummer Aangepaste producten
Min. bestelaantal 20-50 pc's
Prijs negotiable
Verpakking Details Schuim+doos
Levertijd 20-45 werkdagen
Betalingscondities T/T
Levering vermogen 2000 stcs per maand

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechatten: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Naam Aangepaste keramische glijdende lager Categorie Keramische pomplager
Materiaal Drukloos gesinterd siliciumcarbide+roestvrij staal Maat Aangepast, volgens de tekeningen
Gebruik ingeblikte motorpomp Pakket Schuim+doos
Trefwoord ingeblikte motorpomplager Type cruciaal transmissiedeel
Markeren

Thermal Stable SiC Sleeve Sliding Bearing

,

High Hardness Ceramic Sliding Bearing

,

Low Thermal Expansion Canned Motor Pump Bearing
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving

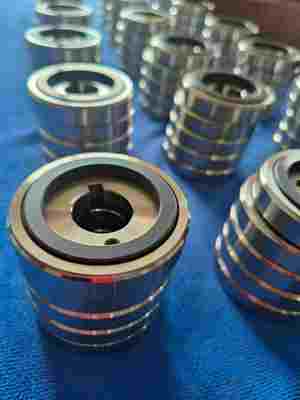

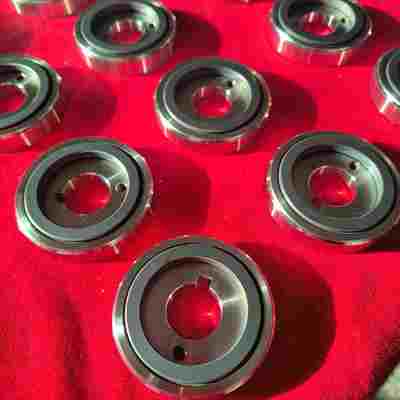

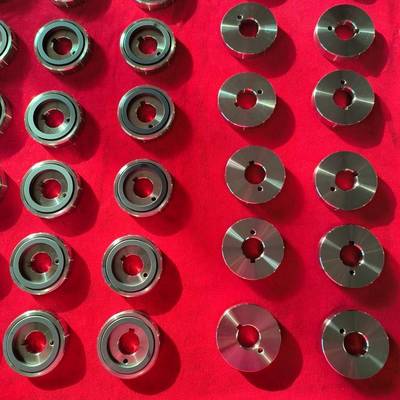

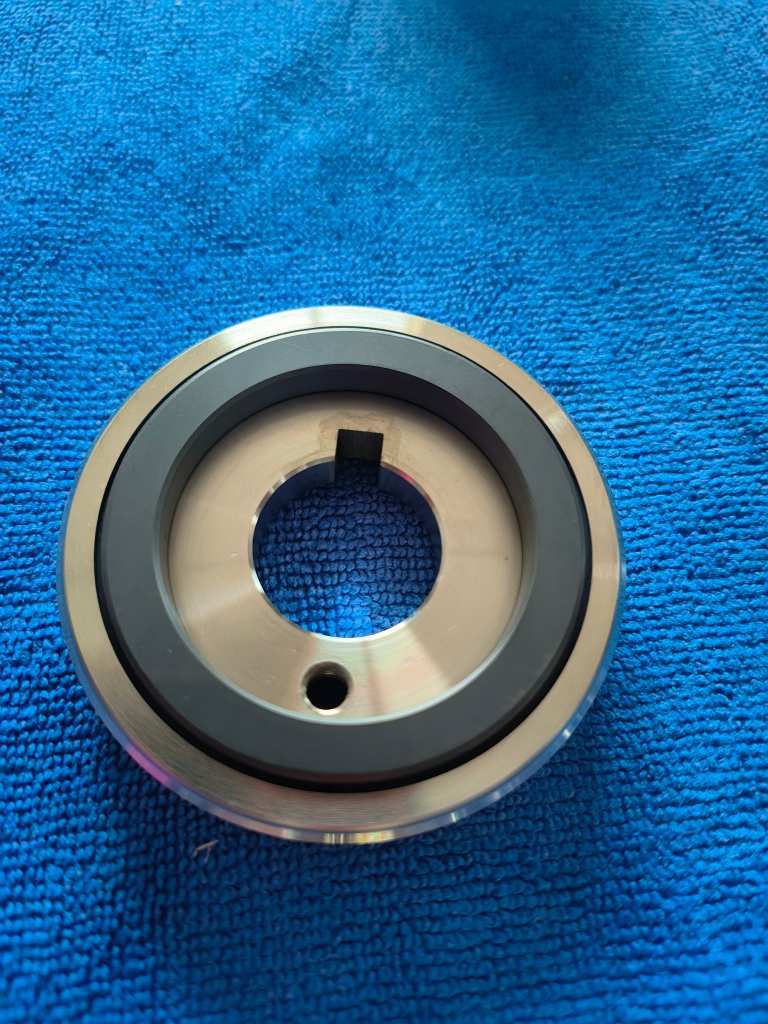

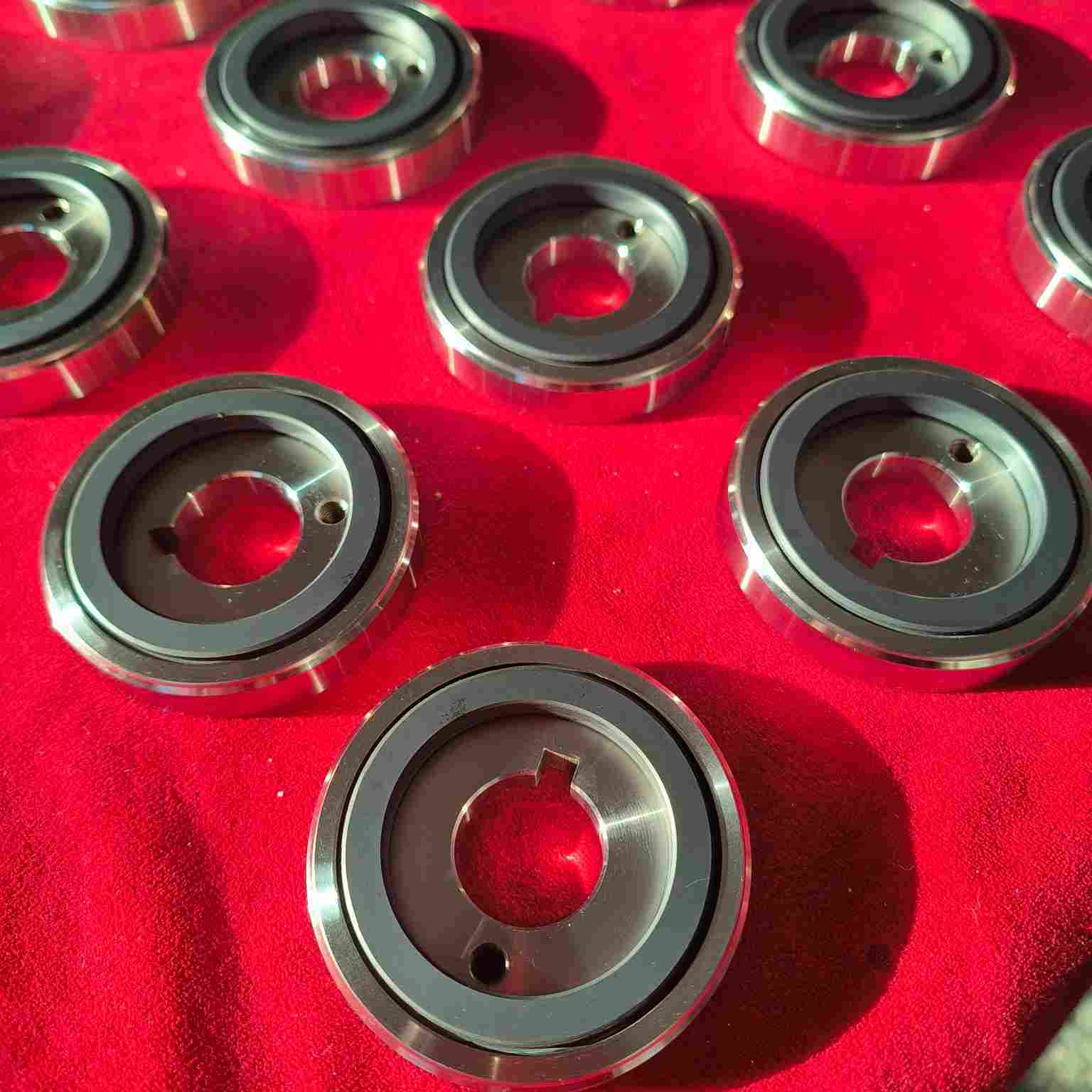

SiC Sleeve Sliding Bearing for Canned Motor Pump
The Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly is a critical transmission component serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Application of Canned Motor Pump
  1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
  2. The canned motor pump can be used in common corrosive conditions with media that are easy to vaporize.
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 0
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 1
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 2
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 3
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 4
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 5
