Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump

  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
Plaats van herkomst China
Merknaam CSQ
Certificering FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modelnummer Aangepaste producten
Min. bestelaantal 20-50 pc's
Prijs negotiable
Verpakking Details Schuim+doos
Levertijd 20-45 werkdagen
Betalingscondities T/T
Levering vermogen 2000 stcs per maand

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechatten: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
naam Aangepaste keramische glijdende lager Categorie Keramische pomplager
Materiaal Drukloos gesinterd siliciumcarbide/zirconia Maat Aangepast, volgens de tekeningen
Gebruik ingeblikte motorpomp Pakket Schuim+doos
trefwoord ingeblikte motorpomplager Type cruciaal transmissiedeel
Laat een bericht achter
Productomschrijving

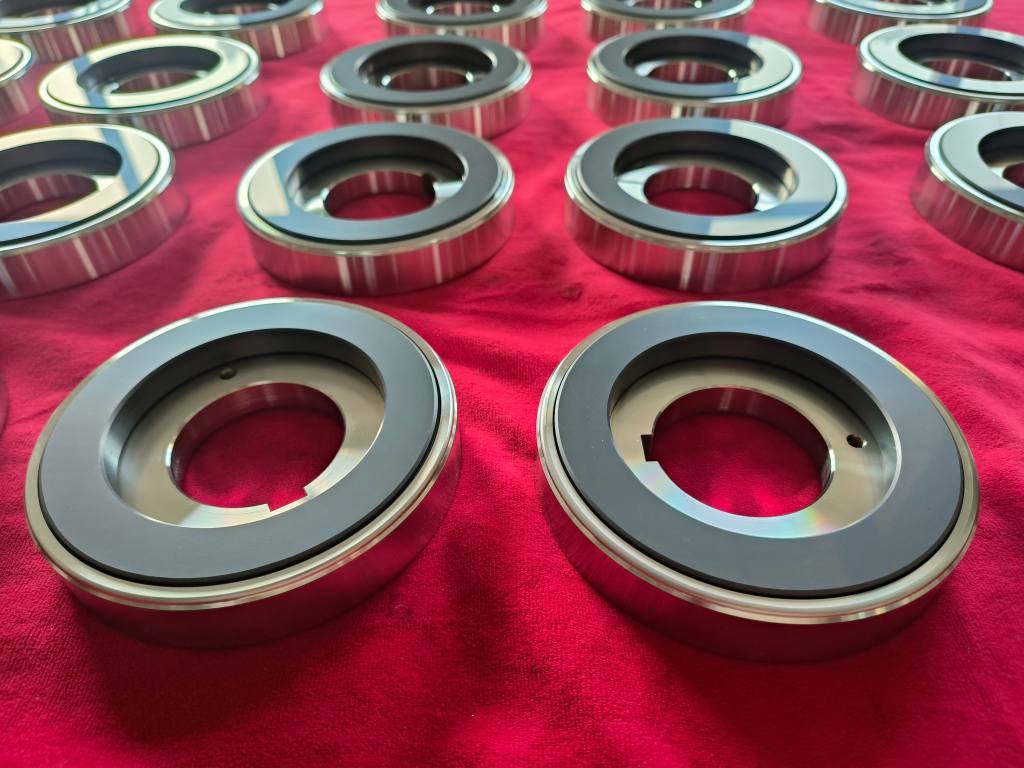

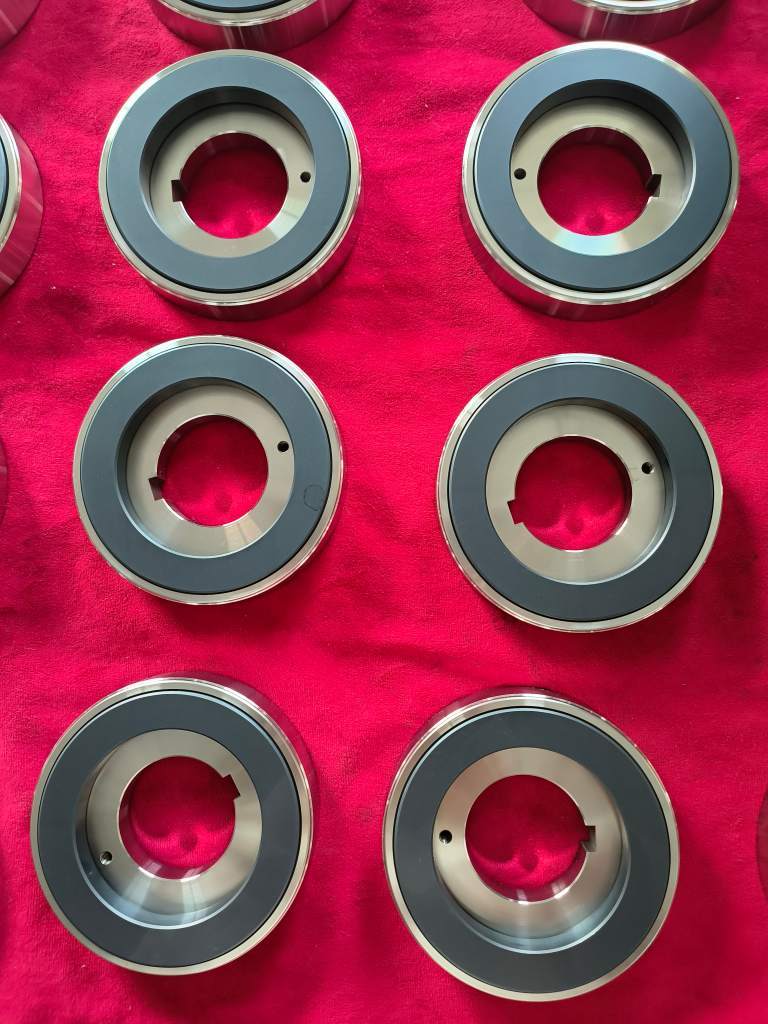

Sliding Bearing SiC Sleeve for Canned Motor Pump
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly

The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.

Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Applications of Canned Motor Pump
  • Used in common corrosive conditions with inorganic matter, acid, alkaline and salt media (SSiC as standard sliding bearing)
  • Used in corrosive conditions with media that vaporizes easily
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10⁻⁶/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 0 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 1 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 2
Our Factory and Processing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering and processing machinery.

Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 3 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 4 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 5
